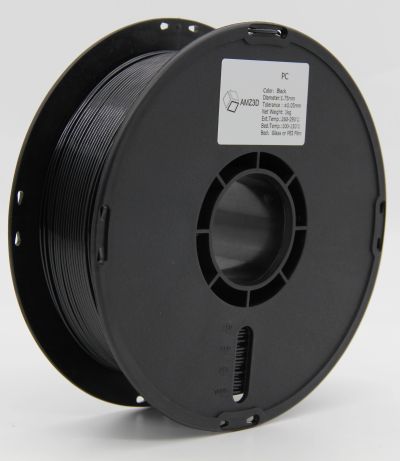

PC FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) 230 ISO 11357
Melt flow rate1 (g/10min) 35±5 ISO 1133
Density (g/cm3) 1.22 ISO 1183
Tensile strength (Mpa) 56-68 ISO 527
Elongation at break (%) 4-6 ISO 527
Maximum force (Mpa) 100±10 ISO 178
Flexural modulus (Mpa) 2600±200 ISO 178
Impact strength (KJ/m²) 50±10 ISO 179
Notch impact strength (KJ/m²) 5±1 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 250-280 ℃
Bed temperature 100-120 ℃
Chamber temperature 80~85 ℃
Active cooling fan No
Layer height 0.1-0.2 mm
Shell thickness ≥0.8 mm
Print speed 30-200 mm/s
Settings are based on a 0.4mm nozzle.
PPA-CF FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~260 ISO 11357
Melt flow rate1 (g/10min) ~18 ISO 1133
Heat deflection temperature (℃) ~200 ISO 75
Density (g/cm3) ~1.20 ISO 1183
Tensile strength (Mpa) 80±5 ISO 527
Elongation at break (%) 12±5 ISO 527
Maximum force (Mpa) 170±10 ISO 178
Flexural modulus (Mpa) 7000±200 ISO 178
Impact strength (KJ/m²) 35±5 ISO 179
Notch impact strength (KJ/m²) 7±2 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 280-320 ℃
Bed temperature 100-120 ℃
Chamber temperature 50~100 ℃
Active cooling fan 0-30%
Layer height 0.18-0.3 mm
Shell thickness ≥0.8 mm
Print speed 40-100 mm/s
Settings are based on a 0.4mm nozzle.

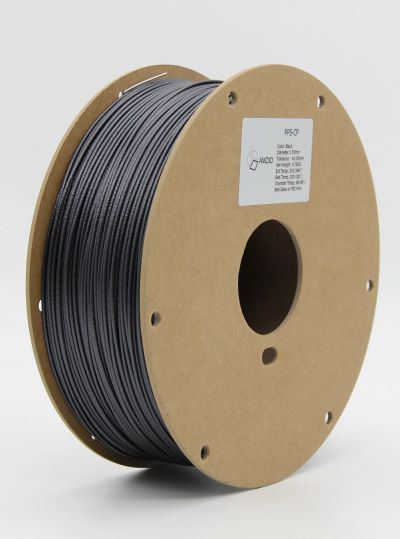

PPS-CF FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~285 ISO 11357
Melt flow rate1 (g/10min) / ISO 1133
Heat deflection temperature (℃) ~260 ISO 75
Density (g/cm3) ~1.25 ISO 1183
Tensile strength (Mpa) 85±5 ISO 527
Elongation at break (%) 1.5±0.5 ISO 527
Maximum force (Mpa) 140±10 ISO 178
Flexural modulus (Mpa) 7000±300 ISO 178
Impact strength (KJ/m²) 30±5 ISO 179
Notch impact strength (KJ/m²) 5±2 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 310-340 ℃
Bed temperature 100-120 ℃
Active cooling fan NO
Layer height 0.15-0.3 mm
Shell thickness ≥0.8 mm
Print speed 50-200 mm/s
Settings are based on a 0.4mm nozzle.

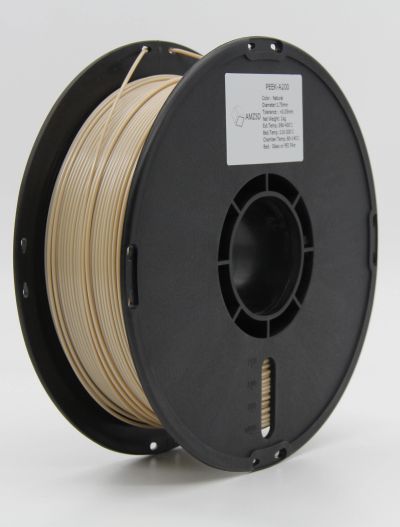

PEEK A200 FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~340 ISO 11357
Melt flow rate1 (g/10min) 18-25 ISO 1133
Heat deflection temperature (℃) ~150(amorphous state)
~180 (crystalline state) ISO 75
Density (g/cm3) ~1.28 ISO 1183
Tensile strength (Mpa) 78±5 ISO 527
Elongation at break (%) 18±2 ISO 527
Maximum force (Mpa) 115±5 ISO 178
Flexural modulus (Mpa) 2800±200 ISO 178
Notch impact strength (KJ/m²) 15±2 ISO 180
ZX Orientation Tensile strength (Mpa) 42±5 ISO 5278
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 390-430 ℃
Bed temperature 100-150 ℃
Active cooling fan OFF,or 0-30%
Layer height 0.15-0.3 mm
Shell thickness ≥0.8 mm
Print speed 20-50 mm/s
Settings are based on a 0.4mm nozzle.

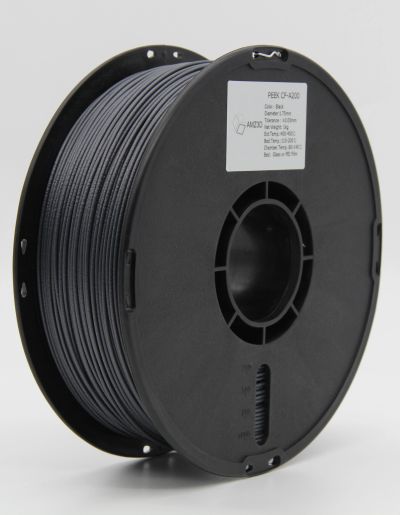

PEEK-CF A200 FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~340 ISO 11357
Melt flow rate1 (g/10min) ~20 ISO 1133
Heat deflection temperature (℃) ~200(crystalline state) ISO 75
Vicat softening temperature (VST) ＞230 ISO 306
Density (g/cm3) ~1.18 ISO 1183
Tensile strength (Mpa) 90±5 ISO 527
Elongation at break (%) 4±1 ISO 527
Maximum force (Mpa) 130±10 ISO 178
Flexural modulus (Mpa) 6000±500 ISO 178
impact strength (KJ/m²) 40±5 ISO 179
Notch impact strength (KJ/m²) 12±2 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 400-450 ℃
Bed temperature 120-150 ℃
Chamber temperature 90-140 ℃
Active cooling fan No
Layer height 0.8-0.3 mm
Shell thickness ≥0.8 mm
Print speed 20-60 mm/s
Settings are based on a 0.4mm nozzle.

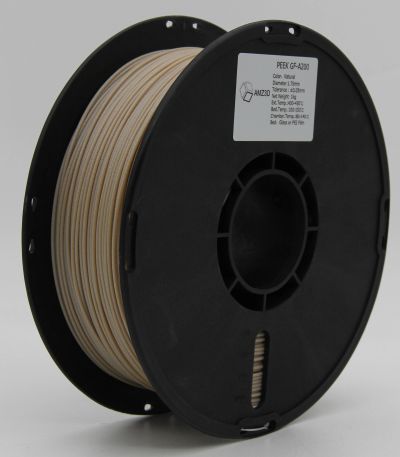

PEEK-GF A200 FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~340 ISO 11357
Melt flow rate1 (g/10min) 14~20 ISO 1133
Density (g/cm3) ~1.32 ISO 1183
Tensile strength (Mpa) 85±5 ISO 527
Elongation at break (%) 5±1 ISO 527
Maximum force (Mpa) 125±5 ISO 178
Flexural modulus (Mpa) 4750±250 ISO 178
impact strength (KJ/m²) 48-55 ISO 179
Notch impact strength (K J/m²) 10-14 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 400-450 ℃
Bed temperature 120-160 ℃
Chamber temperature 80-140 ℃
Active cooling fan No
Layer height 0.2 mm
Shell thickness ≥0.8 mm
Print speed 20-50 mm/s
Settings are based on a 0.4mm nozzle.

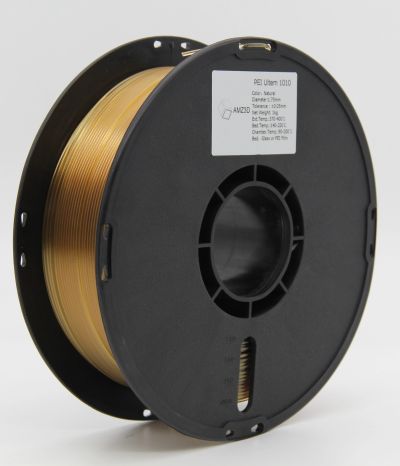

PEI UITEM 1010 FILAMENT
MATERIAL PROPERTIES
Test item Test result Testing standard
Melt temperature (℃) ~320 ISO 11357
Melt flow rate1 (g/10min) ~40 ISO 1133
Heat deflection temperature (℃) ~208 ISO 75
Vicat softening temperature (VST) ~210 ISO 306
Density (g/cm3) ~1.29 ISO 1183
Tensile strength (Mpa) 90±5 ISO 527
Elongation at break (%) 5±1 ISO 527
Maximum force(Mpa) 150±10 ISO 178
Flexural modulus(Mpa) 3800±200 ISO 178
impact strength(KJ/m²) 40±5 ISO 179
Notch impact strength(KJ/m²) 5±2 ISO 179
GUIDELINE FOR PRINT SETTINGS
Nozzle temperature 360-390 ℃
Bed temperature 140-220 ℃
Chamber temperature 90~220℃
Active cooling fan NO
Layer height 0.18-0.3 mm
Shell thickness ≥0.8 mm
Print speed 20-60 mm/s
Settings are based on a 0.4mm nozzle.
